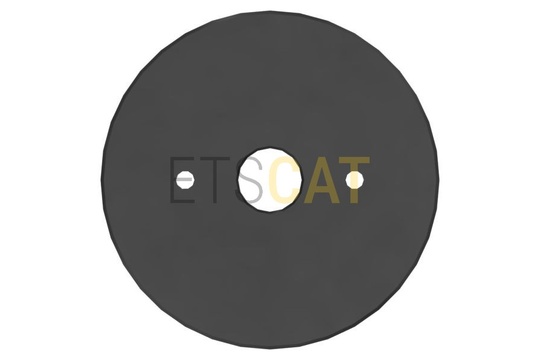

159.98mm Outer Diameter Measuring Disc Caterpillar 2697628

The Measuring Disc is used for determining the shim thickness required to adjust pinion backlash in mechanical assemblies. This disc facilitates the accurate measurement of the gap and space between the pinion gear and its mating gear for ensuring proper gear meshing and optimal performance of the mechanical system. By providing an accurate measurement, the disc allows for the correct selection and installation of shims, thereby achieving the desired backlash tolerance.Attributes:• Allows for accurate determination of shim thickness.• Provides consistent and reliable measurements.• Facilitates correct gear alignment.Applications: The Measuring Disc is used to measure the clearance accurately to achieve the correct backlash, ensuring smooth gear operation and minimizing wear.
