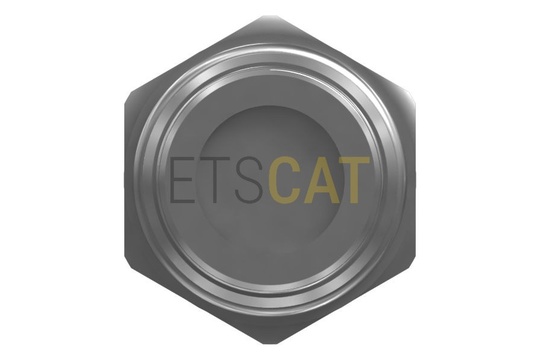

Гидравлический обратный клапан, 1-5/16 дюймов Caterpillar 4159541

The Hydraulic Check Valve regulates the direction of fluid flow within a hydraulic unit. It permits fluid to move in one direction, known as the forward flow direction, while blocking flow in the opposite direction, termed reverse flow. This prevents potential damage to the hydraulic unit components and maintains operational efficiency by controlling fluid.Attributes: • Capable of operating under high pressures up to 25000 kPa.• Exhibits a maximum flow rate of 500 L/min and a nominal flow of 300 L/min at a pressure drop of 700 kPa.• Features a cracking pressure of 10 kPa.• Designed to function within a temperature range of -40°C to 175°C.• Maintains internal leakage below 3 drops/min at a pressure of 10000 kPa at one port while pressurized at the other port.• Allows fluid movement in one direction only, preventing backflow.• Engineered for accurate control of fluid flow to maintain optimal performance.Applications:The Hydraulic Check Valve is utilized within the hydraulic unit of the equipment, positioned where fluid direction needs to be controlled, and found in hydraulic lines and other hydraulic unit components, ensuring proper fluid flow direction throughout the equipment.
