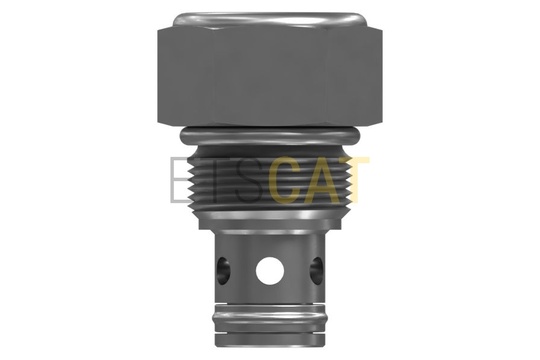

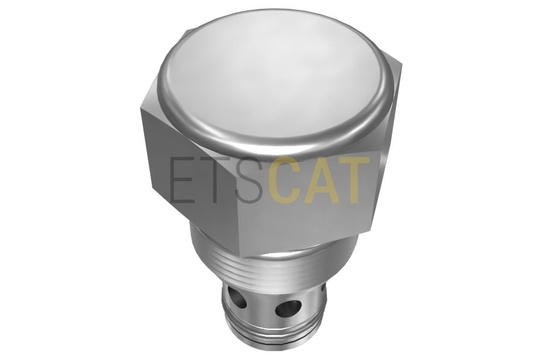

Гидравлический обратный клапан, 3/4 дюйма Caterpillar 348-0421

The Hydraulic Check Valve regulates the direction of fluid flow within a hydraulic unit. It permits fluid to move in one direction, known as the forward flow direction, while blocking flow in the opposite direction, termed reverse flow. This prevents potential damage to the hydraulic unit components and maintains operational efficiency by controlling fluid.Attributes: • Provides resistance against corrosion to ensure long-term performance.• Designed to withstand high pressures.• Allows fluid movement in one direction only, preventing backflow.• Capable of withstanding a maximum inlet pressure of 35000 kPa.• Has a cracking pressure of 206 kPa.• Operates reliably within a temperature range spanning from -31.7 degrees Celsius to 121.1 degrees Celsius.• Exhibits minimal leakage, with a leakage rate of 0.13 cc/minute at 35000 kPa and a fluid viscosity of 32 CSt.Applications:The Hydraulic Check Valve is utilized within the hydraulic unit of the equipment, positioned where fluid direction needs to be controlled, and found in hydraulic lines, cylinders, pumps, and other hydraulic unit components, ensuring proper fluid flow direction throughout the equipment.
