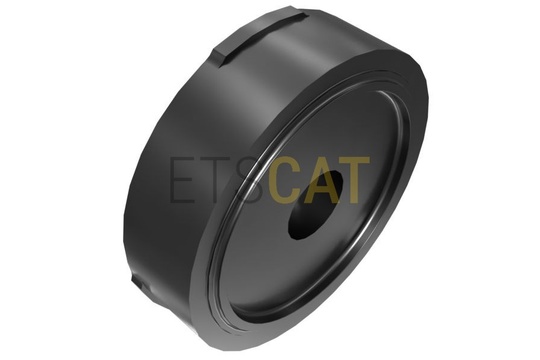

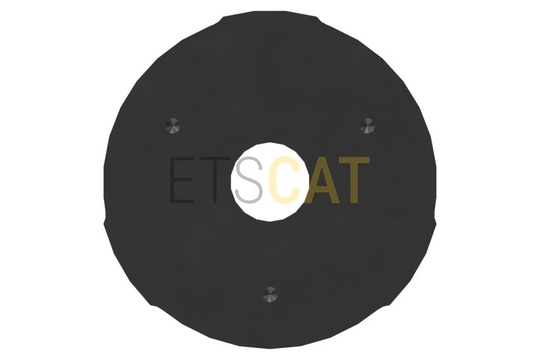

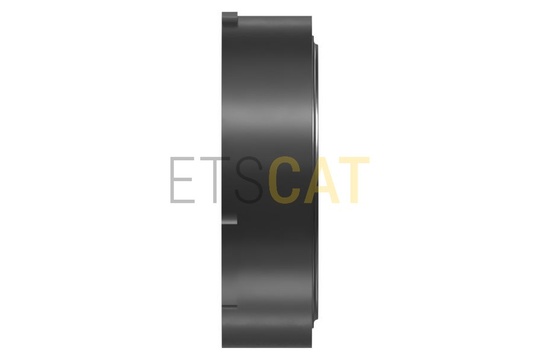

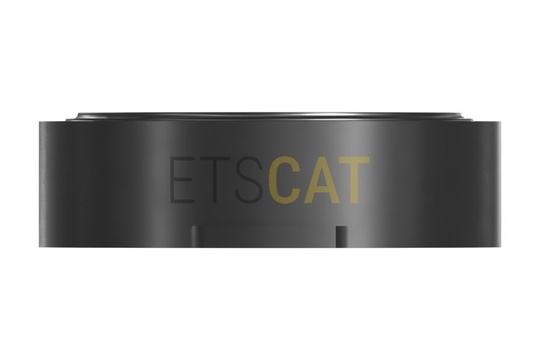

Link Support Swage Tool Caterpillar 6114619

The Link Support Swage Tool is utilized in the assembly of link assemblies and operates by securely holding the link assembly in place while the swaging process occurs, which involves compressing the material around a fitting and connector to create a connection. By providing a stable environment, the tool ensures that all components are accurately aligned, minimizing the risk of misalignment and improper fit that leads to mechanical failure. This swaging process not only strengthens the connection but also ensures that the assembly withstands the stresses encountered in operational environments.Attributes:• Ensures accurate alignment during the swaging process.• Provides a stable and controlled environment for operations.• Helps maintain consistent pressure for effective swaging.Applications: The Link Support Swage Tool is used to facilitate the assembly of link assemblies with accuracy ensuring alignment and a proper fit, contributing to the overall integrity of the mechanical system.
