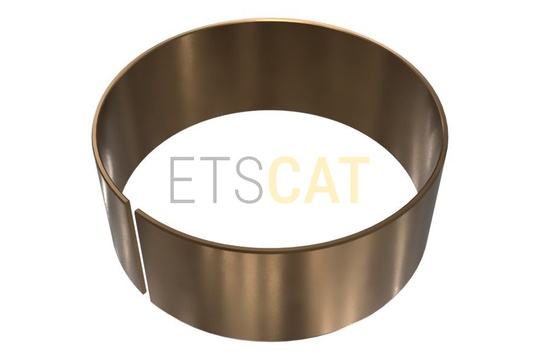

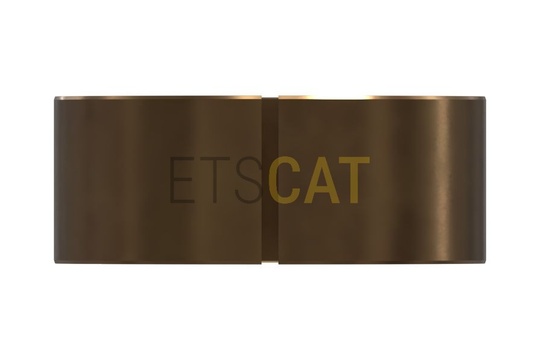

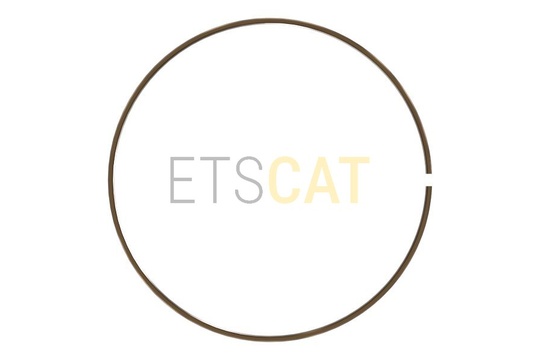

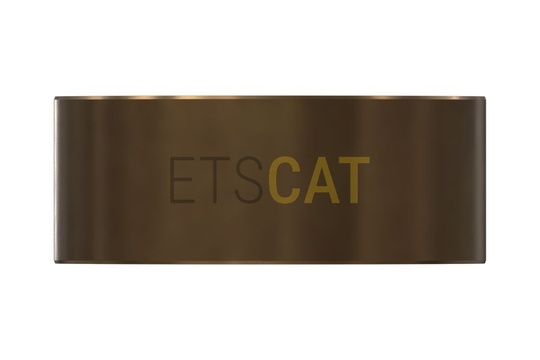

Направляющее кольцо гидроцилиндра рукояти, внутренний диаметр 150 мм Caterpillar 5938319

The Stick Cylinder Guide Ring controls the movement of the cylinder rod by keeping it properly aligned during extension and retraction. It helps guide the rod in a straight path, which supports smooth motion and consistent hydraulic performance. It reduces unwanted side forces that can affect rod movement and system efficiency. By maintaining alignment, the guide supports steady force transfer during operation. It avoids uneven motion that may impact control accuracy.Attributes:• Maintains the correct alignment of the cylinder rod during movement.• Guides the rod to move smoothly during extension and retraction cycles.• Reduces side load acting on the cylinder rod during operation.• Works with a rod diameter of 149.93mm.• Works with an inner diameter groove of 155mm.• Works with an axial groove width of 60.3mm.Applications: The Stick Cylinder Guide Ring is positioned within the hydraulic cylinder assembly where the rod passes through the guiding section. It guides the rod during hydraulic movement and supports stable operation by controlling alignment and motion during working cycles.
