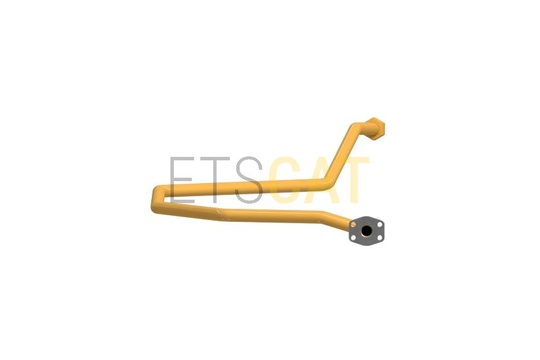

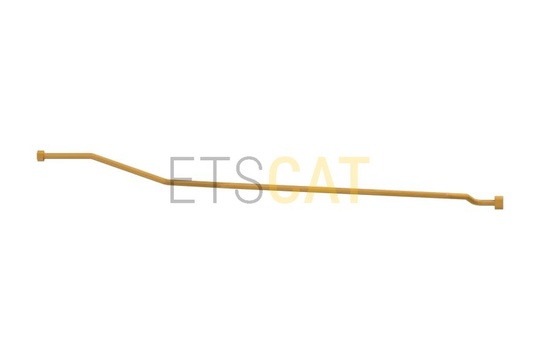

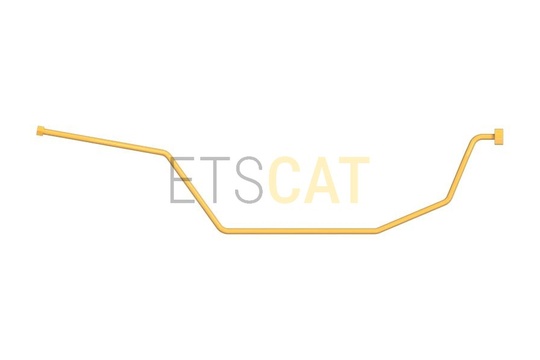

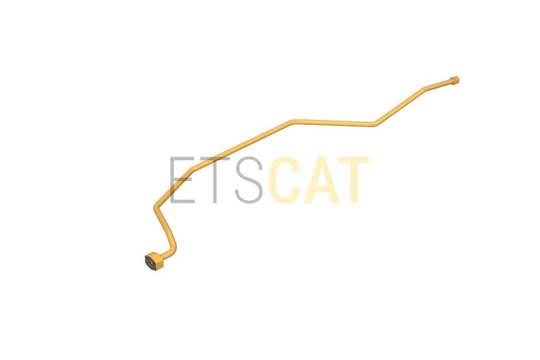

Патрубок трубопроводов тяговой рамы в сборе Caterpillar 2244970

A Draft Frame Lines Tube Assembly serves as a conduit through which hydraulic fluid flows. The fluid power enables controlled movement of the draft frame, allowing for precise adjustment of scrapper blade height and angle during scraping operations. The assembly includes an O Ring Face Seal Sleeve, Nut, and one-piece flange to ensure a secure and leak-free connection.Attributes:• Withstands relief valve pressure of 21000 kPa, minimizing restrictions and pressure drops• Ensures optimal performance of hydraulic unit reducing energy lossApplications:A Draft Frame Lines Tube Assembly is responsible for channeling hydraulic fluid, facilitating efficient hydraulic power transmission, and enabling precise control over scrapping capabilities in demanding and uneven terrains.
