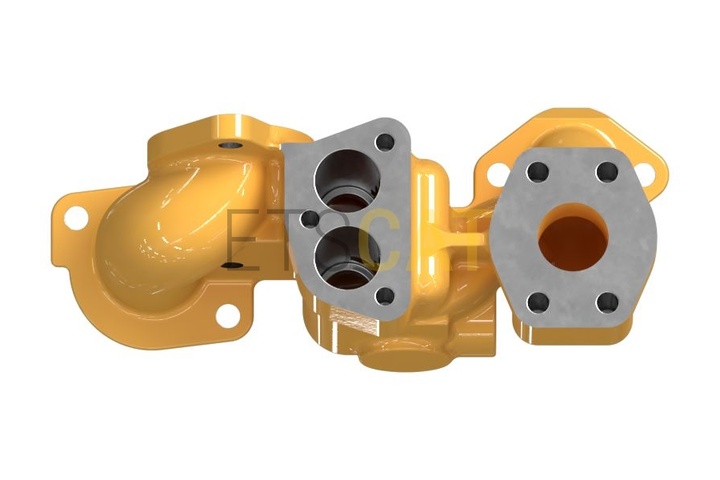

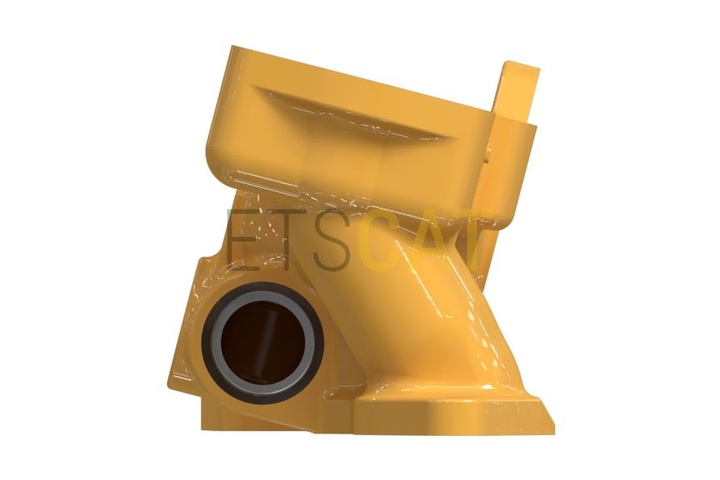

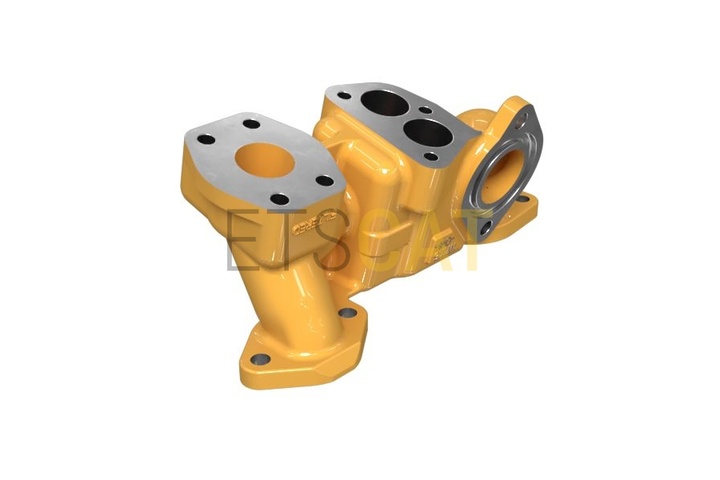

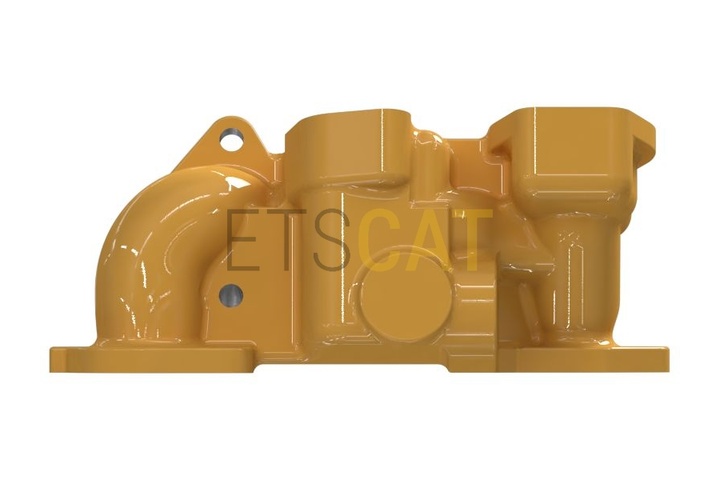

Перепускной корпус масляного фильтра двигателя Caterpillar 1W-1116

An Engine Oil Filter Bypass Body provides an alternate path for oil flow when the oil filter becomes clogged and when oil is too thick during cold starts. In these conditions, excessive resistance in the filter reduces oil flow, risking damage to engine components due to inadequate lubrication. The bypass body houses a pressure-sensitive valve that opens to reroute partially filtered oil directly to the engine’s parts, ensuring continuous lubrication under all operating conditions. This mechanism helps maintain engine performance and reliability, even when filter flow is restricted.Attributes:• Resists chemical degradation from engine oil additives.• Maintains stable oil pressure within the lubrication circuit.• Minimize oil flow restriction under normal and bypass conditions.Applications:An Engine Oil Filter Bypass Body is located within the engine’s lubrication unit to ensure continuous oil flow to engine components when the filter is restricted or bypass is required.
