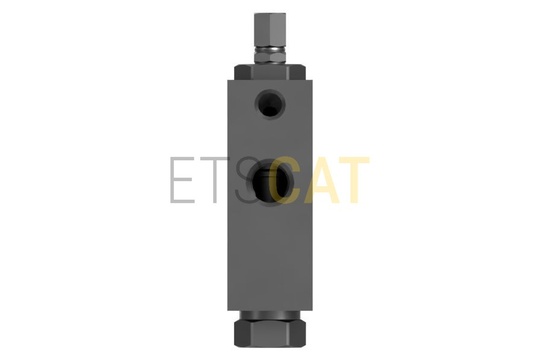

Последовательный клапан Caterpillar 5056747

A Sequence Valve is used to control the sequence of operations and ensure the proper functioning of the hydraulic unit. It consists of a spool or piston mechanism that moves within a valve body. When the pressure at the inlet side of the valve reaches a predetermined set value, the piston or spool opens a passage for hydraulic fluid to flow into the outlet port. The primary purpose of the sequence valve is to regulate the pressure of the incoming fluid, ensuring that it remains within a specific range.Attributes:• Capacity of the valve is 6.81 m³/hr., which allows for precise and controlled sequencing of hydraulic actions• Provided with capped adjustment screw ranging from 689 - 20684 kPa, which offers precise and adjustable pressure settingsApplications:A Sequence Valve acts as a safety mechanism, preventing excessive pressure build-up in the hydraulic unit and maintaining optimal performance, thereby safeguarding the unit and ensuring smooth, reliable operation.
