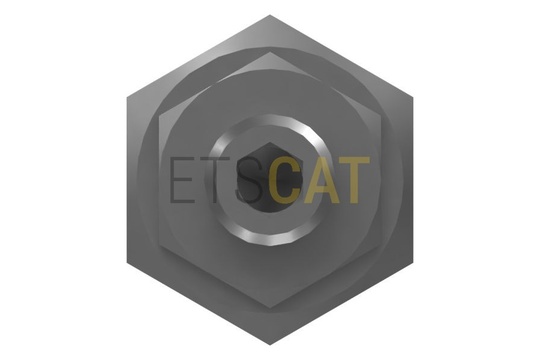

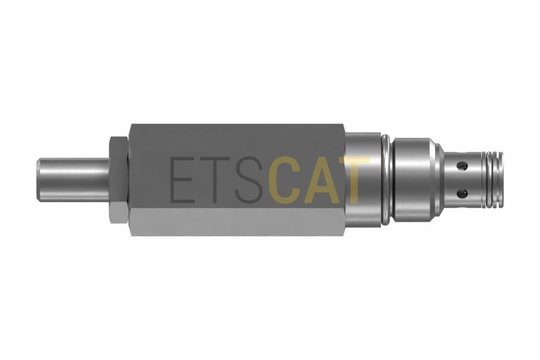

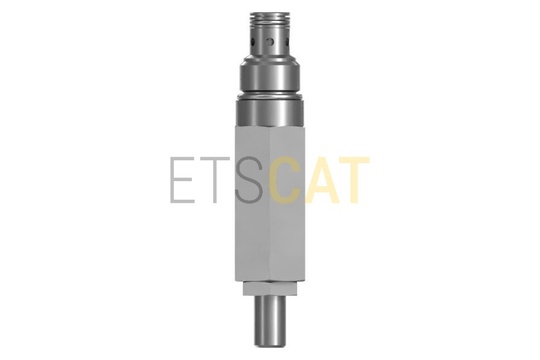

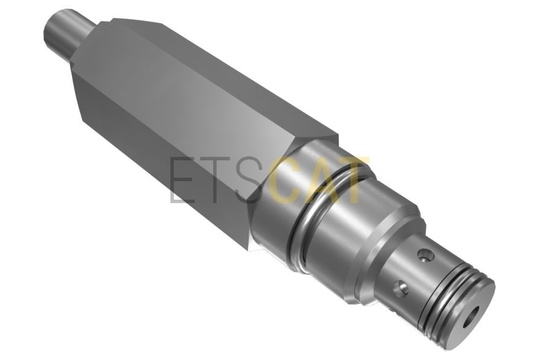

Предохранительный клапан 3/4 дюйма Caterpillar 2863599

A Relief Valve with direct operation operates based on the balance between the fluid pressure and the opposing force exerted by the spring. When the fluid pressure exceeds the set point (adjusted by the spring force), the valve opens, allowing fluid to flow from the inlet port to the outlet port. As the pressure decreases, the spring force pushes the valve disc back onto the valve seat, closing the valve and stopping the flow.Attributes:• Withstand mechanical stress, without compromising their performance or safety• Provides a reliable and effective barrier, preventing the entry of contaminants• Withstands maximum rated pressure is 42000kpa with rated flow of 30l/min (7.93 gallons per min)Applications:A Relief Valve provides pressure relief and ensures the safe operation of equipment by accurately controlling pressure levels, these valves prevent damage and potential hazards.
