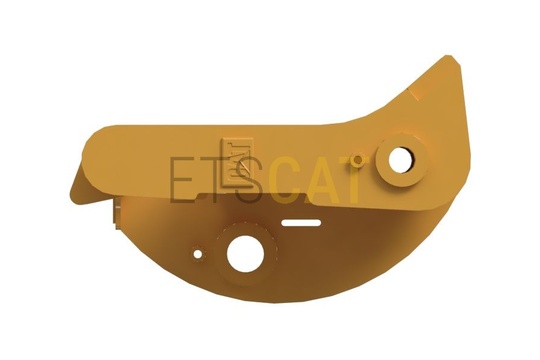

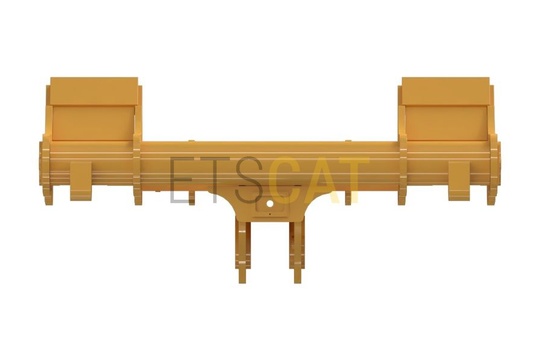

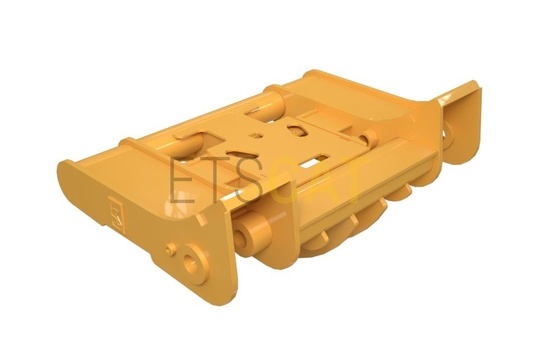

Рама устройства для быстрой смены навесного оборудования Caterpillar 2224985

The Quick Coupler Frame is a structure that is found at the end of a machine's arm. It consists of several parts that work together to provide support and functionality. The main body of the frame is called the plate, which provides structural support. The hinge plate allows the machine arm and the work tool to articulate with one another. The protector plate safeguards internal components from debris. The Stop Plate limits the movement of the coupler during operation. The backup plate reinforces the frame for added strength. The tube provides a channel for hydraulic lines or electrical wiring. The bar acts as a guide or support for locking mechanisms. Finally, the boss is a raised area on the frame that is used for mounting other components.Attributes:• Ensures reliable performance under demanding loads• Withstands frequent use and mechanical stress without breaking or deformingApplications: The Quick Coupler Frame provides a strong and stable foundation for the attachment connection system on a machine. It houses the locking mechanism and facilitates the secure attachment and detachment of various work tools.
