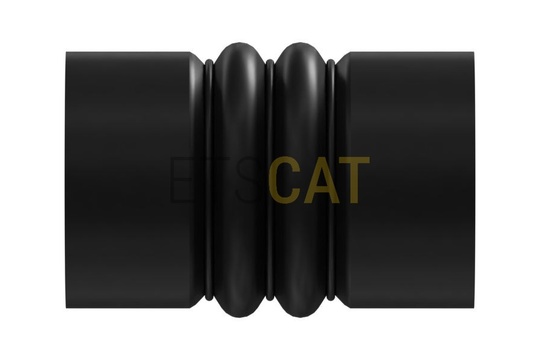

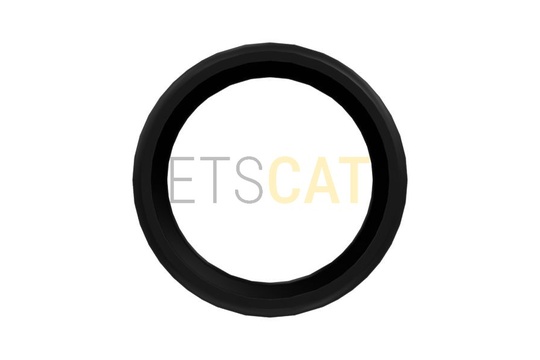

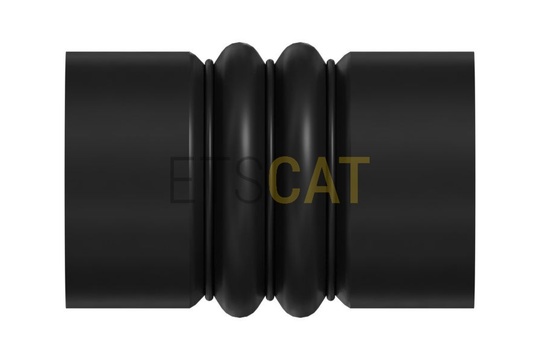

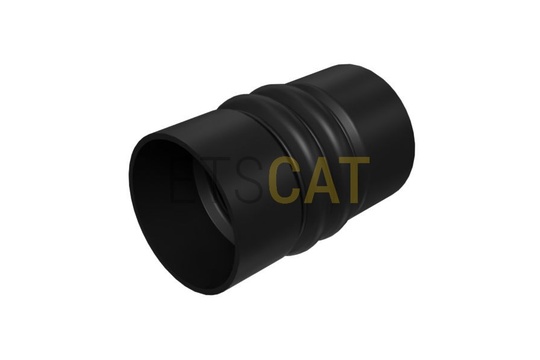

Шланг с гибким сочленением, внутренний диаметр 3,5 дюйма Caterpillar 3266525

The Hump Hose, also known as a bellows hose or expansion joint, is a flexible connector used to accommodate thermal expansion and vibration between air intake components in the engine's forced induction system. This hump hose features a multi-ply construction with a minimum of 4 reinforcement layers. The inner liner is composed of a fluorocarbon (FKM) material, providing exceptional resistance to high temperatures, chemicals, and fuels that may be present in the intake air system.Attributes:• Provide with silicone coating on the meta-aramid plies helps to provide additional thermal insulation and heat resistance to protect the inner components• Enhances the adhesion and sealing properties between the reinforcement layers• Withstand up to a maximum continuous temperature of 260 °C and maximum operating pressure of 413 kPaApplications:The Hump Hose is used in the aftercooler airlines set up to absorb and compensate for this thermal expansion, preventing stress buildup and potential cracking or leaks in the rigid intake piping. The flexible, accordion-like design of the hump hose allows it to expand and contract as needed to match the movement of the connected components.
