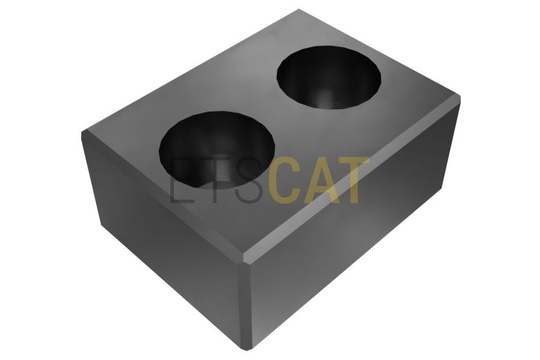

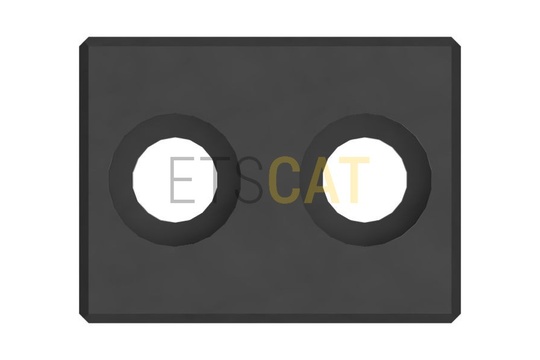

Стопорная пластина направляющего кольца гидроцилиндра Caterpillar 6109032

The Hydraulic Cylinder Guide Ring Lock Plate is used to maintain the position and alignment of the guide ring within a hydraulic cylinder. This plate effectively locks the guide ring in place, preventing it from shifting and rotating during hydraulic cylinder operation. By securely fastening the guide ring, the lock plate ensures that it maintains optimal contact and alignment with other cylinder components, such as the piston and cylinder wall. This alignment is for the efficient operation of the hydraulic cylinder, as it helps to prevent leakage, maintain sealing integrity, and optimize performance.Attributes:• Prevents rotation and movement of the guide ring during operation.• Enhances stability and performance of the guide ring assembly.• Ensures proper alignment and positioning of the guide ring.• Ensures reliable performance under load and pressure.Applications: The Hydraulic Cylinder Guide Ring Lock Plate is located on the outer surface of the hydraulic cylinder housing, adjacent to the guide ring installed and secured using bolts and fasteners, ensuring it remains firmly in place to secure the guide ring.
