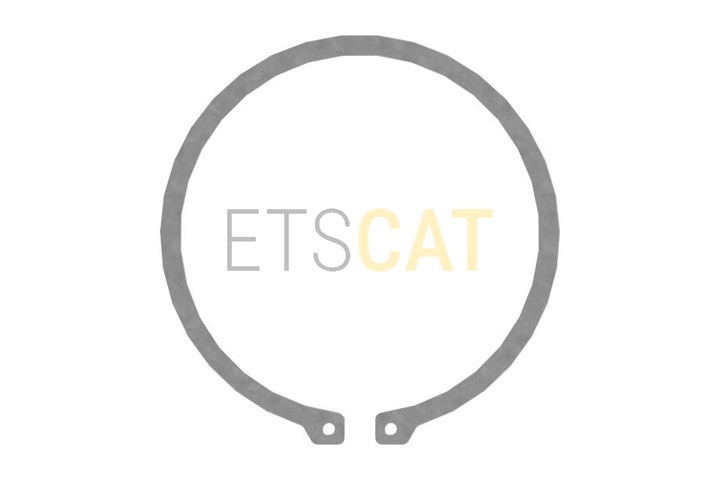

СТОПОРНОЕ КОЛЬЦО Caterpillar 459-7136

The Swing Drive Carrier Snap Ring holds the carrier assembly in its position within the swing drive system. It fits into a groove and acts as a locking element that restricts axial movement of the carrier during operation. As the swing drive rotates to control upper structure movement, the snap ring keeps the carrier securely seated, ensuring that internal components remain properly aligned. It allows smooth transmission of rotational force without displacement of the carrier.Attributes:• Ensures the carrier remains seated during repeated movement cycles.• Prevents shifting that could interrupt rotational movement.• Supports stable gear interaction by keeping the carrier fixed.Applications: The Swing Drive Carrier Snap Ring is used within the swing drive assembly, where it locks the carrier in position inside its housing. In this location, it prevents movement of the carrier and ensures stable rotation and proper functioning of the internal components.
