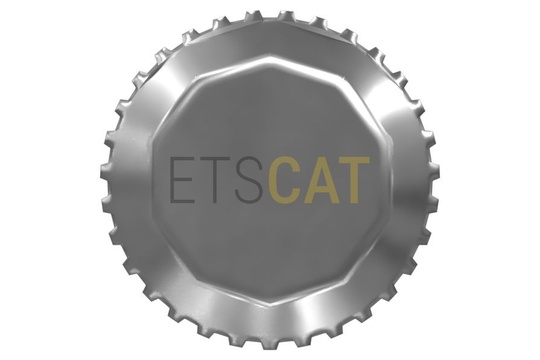

ВАЛ Caterpillar 5457124

The Transmission Planetary Speed Drive Shaft transfers rotational motion within the planetary speed drive system to maintain consistent movement through the transmission assembly. The shaft enables smooth transfer of torque between connected components, allowing the speed drive arrangement to function in a balanced and controlled manner. By guiding rotational force through the planetary arrangement, the shaft supports steady power delivery and helps avoid irregular motion during operation.Attributes:• Supports balanced movement of planetary speed drive components.• Helps maintain continuous power flow through the transmission system.• Allows rotational force to pass through the speed drive arrangement.• Normal Diametral Pitch is 64/128 inch.• Normal Pressure Angle is 45 degree.• Fit type is tooth side sliding.• Pitch diameter is 12.304 millimeter.• Base Diameter is 8.7 millimeter.• Form diameter maximum is 12.04 millimeter.• Normal circular tooth thickness is standard.• Maximum effective tooth thickness is 0.704 millimeter.• Minimum actual tooth thickness is 0.643 millimeter.• Measurement pin diameter is 0.762 millimeter.• Minimum measurement Over Pins is 13.513 millimeter.Applications: The Transmission Planetary Speed Drive Shaft is located within the transmission planetary speed drive assembly and transfers rotational motion between connected planetary components to maintain steady torque flow through the transmission system.
