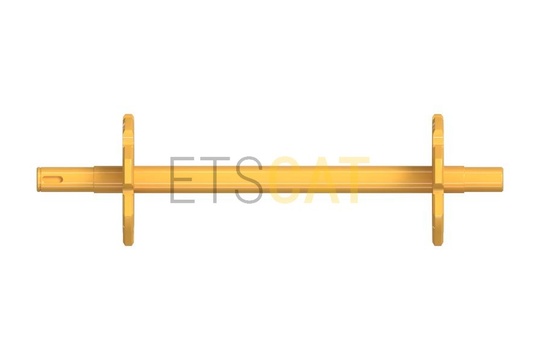

ВАЛ В СБОРЕ FEE Caterpillar 3736118

The Feeder Shaft in a paver is a fundamental mechanical component integral to the asphalt paving process. Positioned within the paver's hopper, this shaft is equipped with rotating paddles or flights. Its primary function is to facilitate the controlled movement of asphalt mix from the hopper to the distribution system, which then evenly spreads the material onto the pavement surface. The feeder shaft's rotation is synchronized with the paver's forward movement, ensuring a steady and uniform flow of asphalt. This mechanism allows for precise regulation of the material feed rate, which directly influences the thickness and consistency of the laid asphalt layer. By adjusting the feeder shaft's speed and angle, operators can fine-tune the paving process to meet specific project requirements.Attributes:• Allows operators to adjust speed and angle to achieve accurate project specifications• Contributes to accurate and reliable paving results, improving overall project outcomes• The number of teeth is 7, the pitch diameter is 172.86, and the Chordal pitch is 75Applications:This Feeder Shaft in a paver transfers asphalt mix from the hopper to the distribution system, ensuring controlled and uniform material flow during paving.
