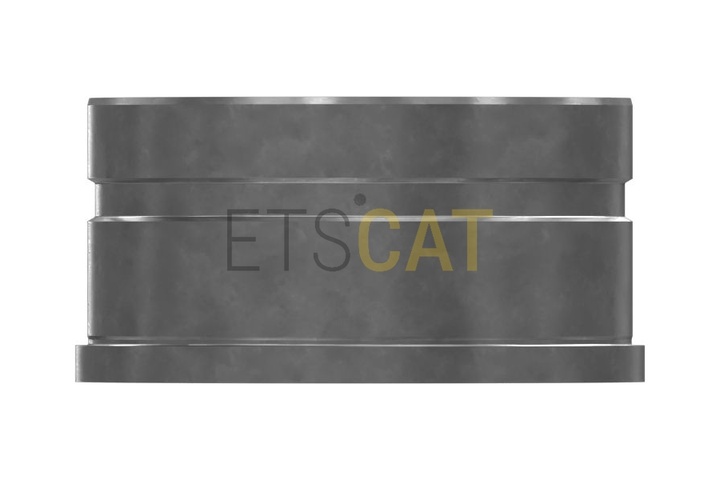

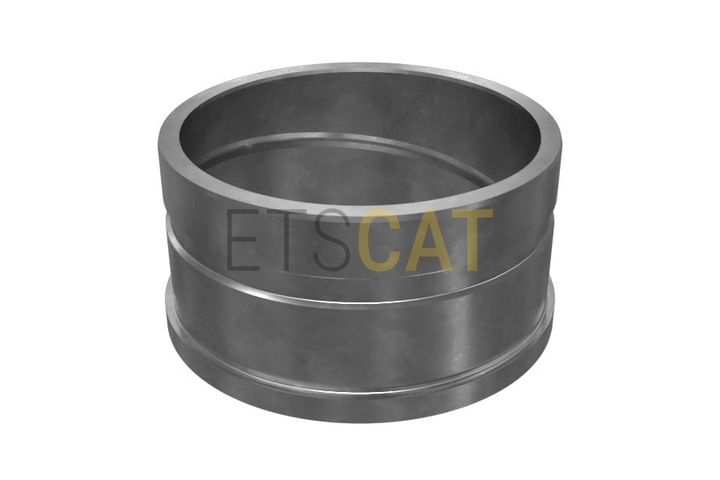

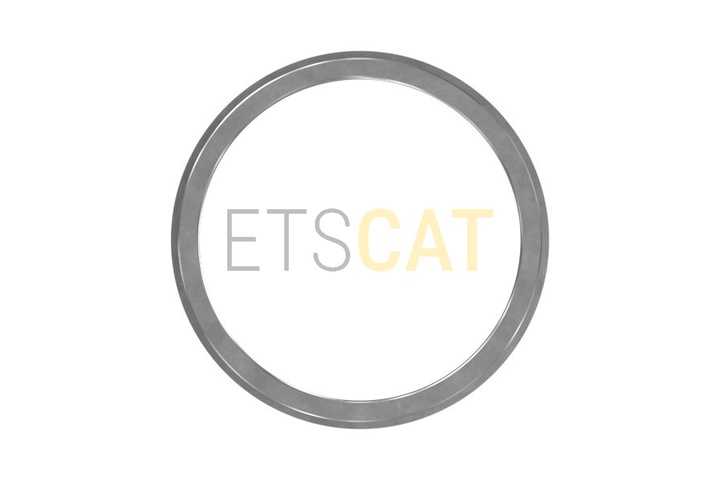

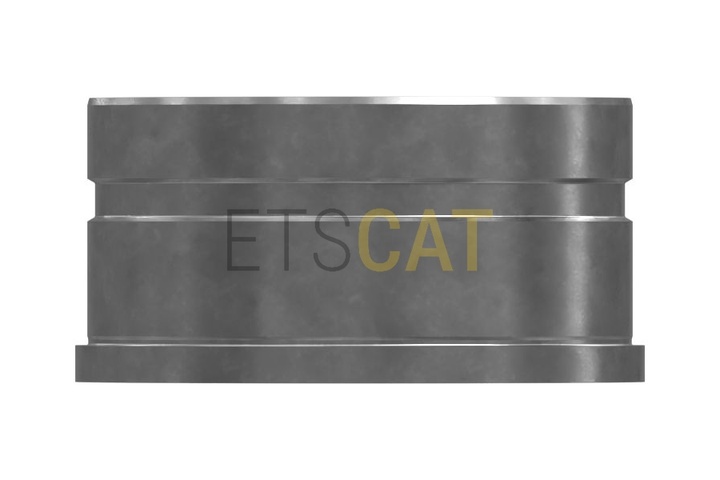

ВТУЛКА Caterpillar 475-3519

Артикул: 475-3519
Производитель: CATERPILLAR 🇺🇸
Втулка Cat® (вкладыш подшипника скольжения)
Под заказ (+1 месяц)
117 006 ₽

Описание

Description:Cat® Machine Linkage Sleeve Bearings support rotational movement between machine frames, linkages and work tools. They are found mostly in the arms and buckets of machines. Genuine Cat Pin and Sleeve Bearings are specifically designed to operate as a system to deliver the performance you expect. Caterpillar design engineers match the right combination of dimensions, materials, surface finish, and manufacturing processes, to each part to enable them to work and wear effectively with all the other neighboring and dependent parts.Attributes:Cat heavy duty Sleeve Bearings are built with high grade steel and hardened for exceptional strength and wear life. They work as a system for your specific Cat machine and are tested and proven in the world's most severe applications. These bearings offer lower overall cost, outstanding strength and fatigue life, superior resistance to abrasive wear, and exceptional protection against galling, even in high-load conditions.Recommended Application:Cat Sleeve Bearings are designed for conditions that require demand and load strength for longer bearing life. Cat Sleeve Bearings are the top choice for maximum performance in demanding applications. They are designed to match to the mating pin.

Характеристики

Материал
Бронза,Марганцевая бронза Латунь
Наружный диаметр (mm)
225
Наружный диаметр (in)
8.86
Внутренний диаметр (mm)
200
Внутренний диаметр (дюймы)
7.87
Общая длина (мм)
117
Общая длина (в дюймах)
4.606
Тип
Фланцевая втулка
Диаметр фланца (мм)
235
Диаметр фланца (дюймы)
9.252
Пересекающиеся отверстия
false
Внутренняя канавка
Смазочное отверстие в подшипнике
Толщина фланца (в дюймах)
0.591
Толщина губы (мм)
15
Толщина губы (дюймы)
0.59
Наружный диаметр гильзы (мм)
225
Sleeve Inside Diameter (in)
7.874
Sleeve Outside Diameter (in)
8.858
Unique Features
false
Внутренний диаметр гильзы (мм)
200
Толщина фланца (мм)
15
