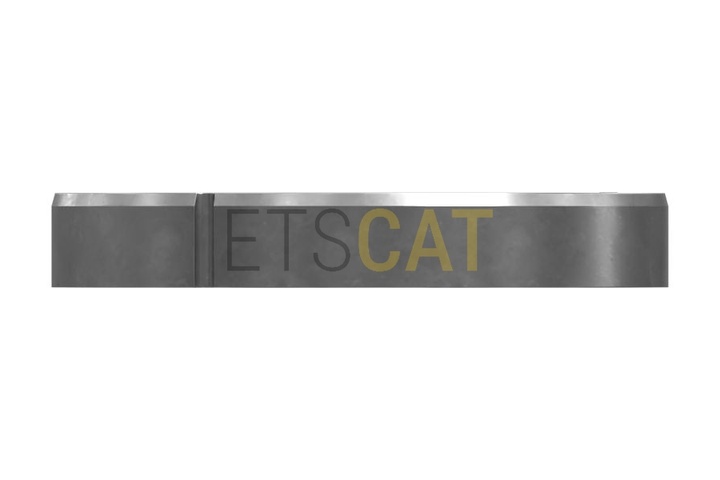

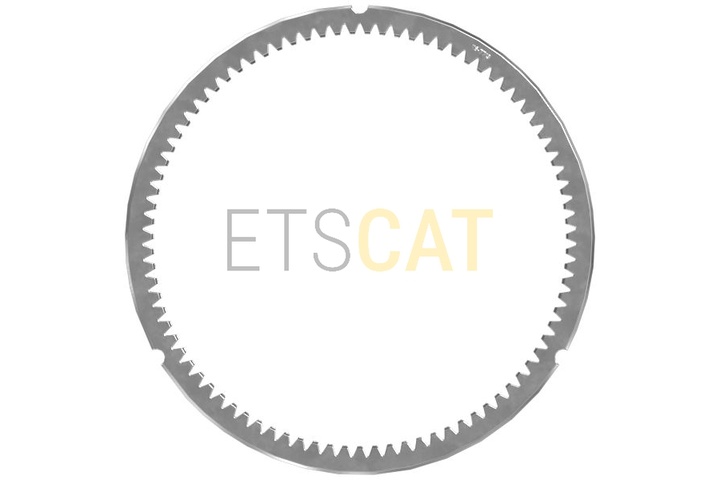

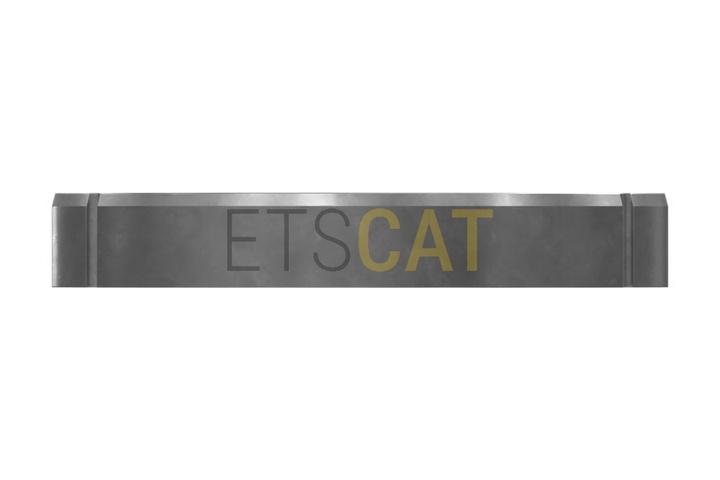

ЗУБЧАТЫЙ ВЕНЕЦ Caterpillar 116-7713

Description:Ring gears, such as part 116-7713, are commonly used in planetary gear sets of final drives.All Cat gears have unique metallurgy compositions tailored to specific applications, with special steel formulas that improve impact resistance and ensure uniformity and proper load transfer. Some Cat gears also undergo proprietary heat treat processes to improve surface, bore, and core hardness. The result is greater durability, which means longer life and better performance.Attributes:• Hardened steel ring gear• Spur Gear Number of Teeth: 87• Pitch Diameter: 315.686 mm (12.43 in)• Inside Diameter: 312.26 mm (12.29 in)• Outside Diameter: 355 mm (13.98 in)• Width: 60 mm (2.36 in)Application:Consult your owner's manual or contact your local Cat Dealer for more information.
